Large exhibition tents
Size info of large exhibition tents:
|
Model |
Span width |
Side height |
Ridge height |
Bay distance |
Main profile |
|
TT25 |
25m |
4m |
8.0m |
5m |
203x110x4.5mm |
|
TT30 |
30m |
4m |
8.8m |
5m |
254x120x5.0mm |
|
TT35 |
35m |
4m |
9.6m |
5m |
300x120x5.0mm |
|
TT40 |
40m |
4m |
10.5m |
5m |
350x125x6.0mm |
|
TT50 |
50m |
4m |
12.1m |
5m |
350x125x6.0mm |
Description of large exhibition tents:
1,Size: Clear span width 50m, length is unlimited, it can be extended by every 5m bay.
2,Fabric: Double PVC coated polyester fabric,( opaque roof-850g/sq.m, translucent side wall-650g/sq.m),water proof, UV resistance, fire retardant according to standard NFPA701, CFM &DIN4102 B1/M2
3, Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
4, Connections: Hot-DIP galvanized steel
5, Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
6, Wind load: 100km/h (can be reinforced)
7, Snow load: 75kg/sq.m (snow can't stay if use big degree roof pitch
8,Noneinteriorpoleandgroundspace100%used.

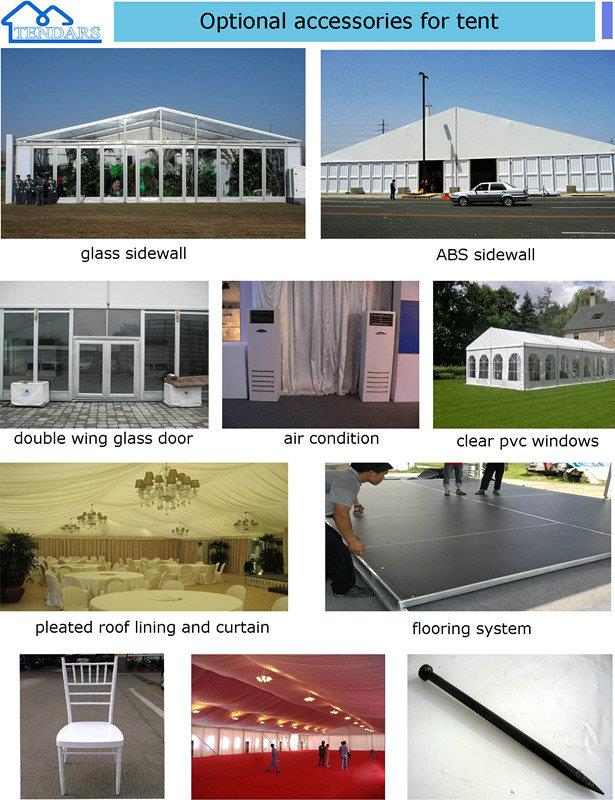

Optionalaccessories of large exhibition tents:
*Doors:Double wing glassdoor/slidingdoor/PVCrollingdoor
*Window:PVC clearwindow/glass window for glass sidewall
*Wall:Glasswall/sandwichwall/solidwall/clearwall
*Table&chair
*Lining&Curtains
*Floorsystem, stage
*Air conditioner

Installationtips
(1)Oncementortarmacground,theexpandablescrewwouldbeneeded.
(2)Onsandandgrassground,thegroundanchorswouldbeneeded.
(3)Onmarbleortile,theweightplatewouldbeneeded.

Further more question, feel free to check with us, or leave your message now!
