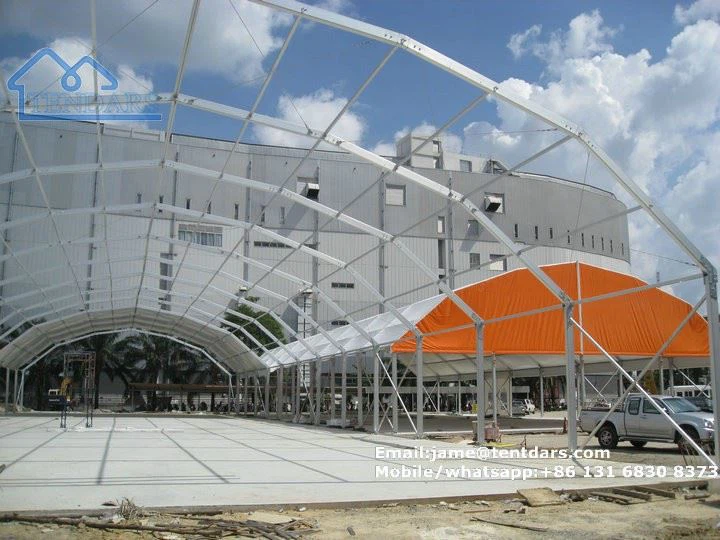

Outdoor dinning tent

Specification of Outdoor dinning tent:

Framework material: hard pressed extruded aluminum alloy 6061/T6 with technically anodized,

long lifespan, high strength,not rust. Can be used over 20 years.

Roof cover: 850g/sq.m light block-out double PVC coated polyester fabric,

UV protection ,fireproof , waterproof. Can be used around 8 years.

Sidewalls: 650g/sq.m PVC fabric, glass hard walls, ABS plastic hard wall, Sandwich hard walls,

Double wing glass door, single wing glass door, steel rolling door etc..

Tent Material description

Available size of the Outdoor dinning tent:

1) Size: The clear span width range from 3 meters to 60meters

2) Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per

requested)

3, Length: The tent length is unlimited, extended by 5m each bay(pillar to pillar distance 5m)

Character and feature of outdoor dinning tent:

* Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
*Wind load: max. 100km/h (can be reinforced system)
*Snow load: 75kg/sq.m (snow can't stay if use big degree roof pitch design)
*Easy to be assembled and dismantled, movable.
*No pole inside, 100% available interior space.

*Tent can be fixed on any kind of ground

dinning tent facility

Fixing method of outdoor dinning tent:

Expand Screw (Fixed on the concrete ground) / Ground Anchor (Fixed on the grass land and sandy ground)/ Weight Plate (Portable Fixed Style, can be fixed on any kind of ground).

fixing measure

Application of the tent:

Our aluminium frame structure tent can be widely used as the outdoor dinning, outdoor sport field cover, basketball court cover, tennis court cover, swimming pool cover, wedding party tent, outdoor warehouse, workshop, outdoor exhibition, car show room cover, etc..

Please let us know what do you use the tent for. Then will offer you the suitable suggestion solution.

polygonal roof tent
