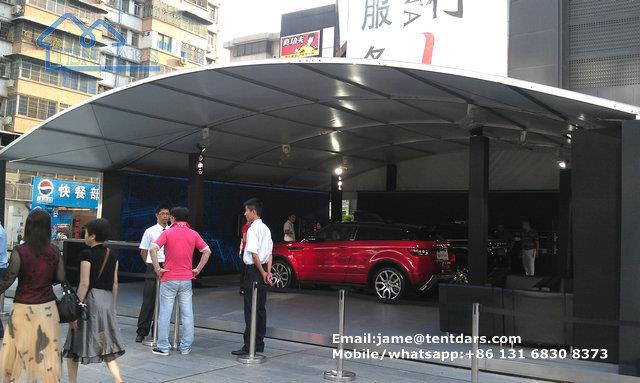

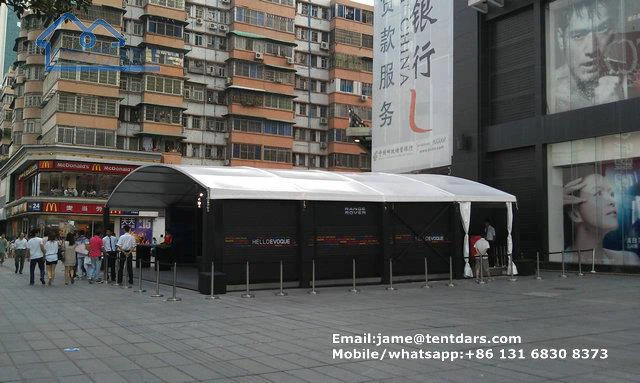

Arch marquee
|
Structureof arch marquee |
|
|
Aluminum profile |
high pressed extruded aluminum alloy 6061-T6, 122X68X3mm for 10,11,12m width |
|
|
166x88x3mm for 13m, 14m. 15m, 17m, 18m width. All are anodized |
|
Steel parts |
hot-dipped galvanized , Passed 144 hour of salt spraying test |
|
Raw material |
|
|
Top roof fabric |
850g/sqm(30 Ounce)PVC fabric, waterproof , fire retardant M2 |
|
|
UV protection, and Rotproof. Blackout |
|
Side panels |
|
|
|
UV protection, and Rotproof. Translucence. |
|
|
(2) 5cm thickness of sandwich solid wall, the outer panel is 0.5mm steel. |
|
|
Stuff all in is fiberglass, heat resistant, and noise resistant. |
|
Option Accessories |
|
|
Optional Acessories |
Grass anchors lining, light, wood flooring, slide glass door and so on. |
|
Loading Specification |
|
|
Wind loading: |
100km/hour |
|
Snow loading: |
75kg/square meter |
What we can offer?
1, high quality warranty(aluminium frame for 10 years warranty time, and the PVC cover 3 years warranty time )
2, Transportation to your destination port or your door.
3, tent installation video or detail installation drawing. We also can fly to your side to assist your installation.
4, Other facility for the tent, such as the air conditioner, stage, lighting, spectator stand etc. can be supply in one stop service.
