The Growing Demand for Aluminum Tent Structures in Padel Courts
As the demand for padel courts continues to rise, the need for Padel Court Shading is also increasing. These tents offer several advantages:
Lightweight and Convenient: Compared to steel tent, Padel Court Shading is much lighter and more portable. For example, a standard aluminum frame canopy weighing around 25–35 kg can support the same load as a steel frame canopy that typically weighs 50–70 kg. This means aluminum structures are approximately 40–50% lighter than steel.Additionally, our aluminum is treated with anodized, making it highly resistant to rust and corrosion.
Eco-friendly and Sustainable: Aluminum is a recyclable material, making it an ideal choice for markets that are increasingly focused on environmental sustainability and green practices.
Aesthetic and Customizable Design: Aluminum tents have a sleek and modern appearance. Their flexibility in design allows for customization based on specific client needs, offering a unique and high-end aesthetic.
1. Size and Shape Customization
Padel Court Shading can be tailored to fit specific dimensions, from small 10x10m tents to large 40x100m sport halls. Manufacturers can also adjust the height, roof slope, and modular sections to fit irregular or unique spaces. This flexibility ensures the tent meets the exact spatial needs of the project.
2. Frame Design and Strength
Padel Court Shading can be customized according to load-bearing requirements. Aluminum alloys can support heavy roofs or additional equipment, such as lighting, banners, or HVAC units, without compromising stability. The thickness and cross-section of the aluminum tubes can be engineered to withstand wind and snow loads specific to the installation site.
3. Wall and Roof Panels
Canopy walls and roofs can be adapted using different materials and designs:
PVC, Oxford, or Polyester fabrics for waterproofing and UV resistance.
Transparent panels for natural lighting.
Printed or branded panels for marketing and promotional purposes.
4. Accessories and Features
Customizable accessories further enhance functionality:
Doors, windows, and vents for ventilation and accessibility.
Partition walls for creating separate rooms or storage areas.
Anchoring systems for various terrains, including sand, grass, or concrete.
5. Color and Branding
Aluminum Padel Court Shading can be powder-coated or anodized in various colors to match corporate branding or event themes. Logos, slogans, and graphics can be printed directly onto the canopy fabric for a professional, eye-catching look.
Modular and Easy to Install/Disassemble: The modular design of Padel Court Shading makes installation and disassembly incredibly convenient. By installing just one module, all other modules can be easily replicated. This feature is especially beneficial for businesses involved in frequent relocations or tent rental services.
Therefore, our tents are an intelligent choice for businesses that require quick setup and mobility.

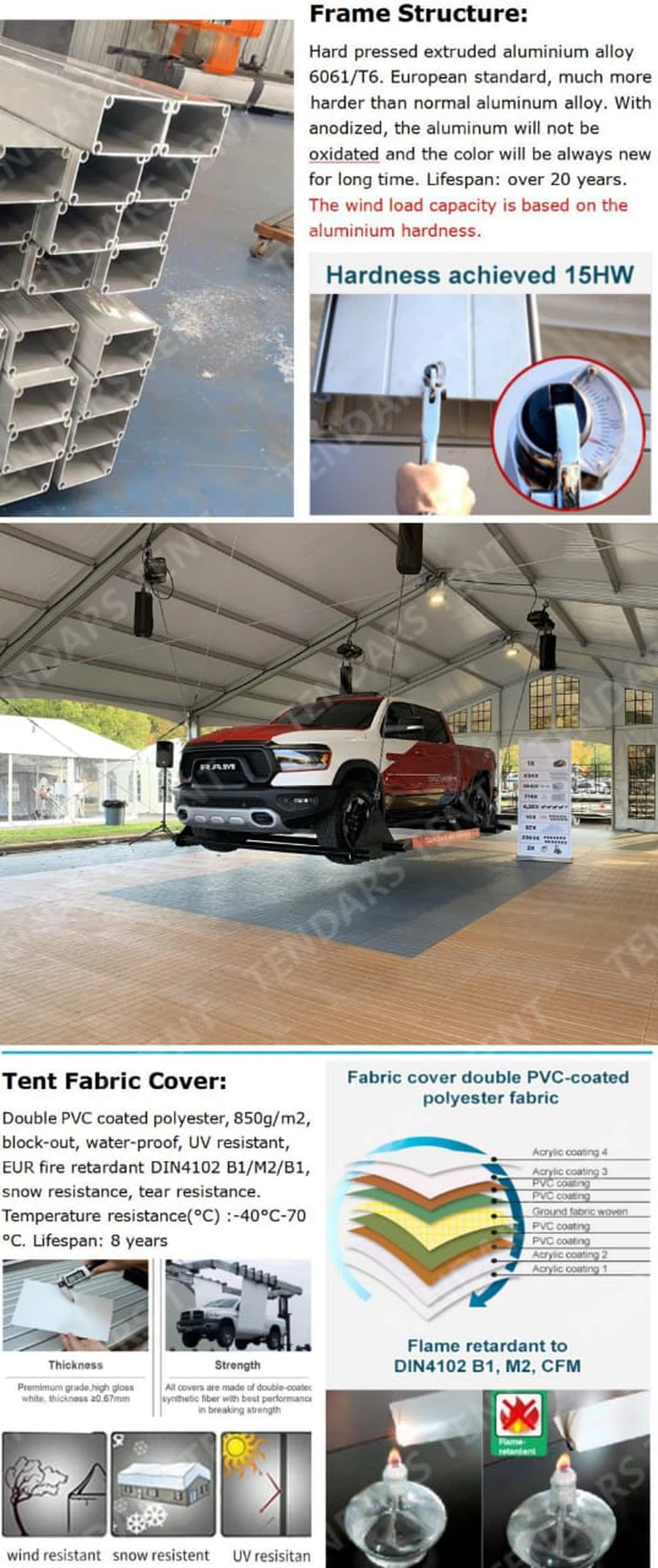

The structure of our Padel Court Shading is aluminium alloy 6061/T6. European standard, harder than normal aluminum alloy. With Anodized Aluminum, Enjoy a Fresh, New Look for Years.
| Canopy Size | Frame Material | Max Wind Load | Max Snow Load | Equipment Load Capacity |
|---|
| 3x3 m | Aluminum Alloy | 80 km/h | 10 kg/m² | 150 kg |
| 5x5 m | Aluminum Alloy | 100 km/h | 15 kg/m² | 300 kg |
| 10x10 m | Aluminum Alloy | 120 km/h | 20 kg/m² | 500+ kg |
Example Load-Bearing Specifications for large Aluminum Alloy Canopies:
| Canopy Size | Frame Material | Max Wind Load | Max Snow Load | Equipment Load Capacity |
|---|---|---|---|---|
| 20x50 m | Aluminum Alloy | 100–120 km/h | 15–20 kg/m² | 800–1,000 kg |
| 30x60 m | Aluminum Alloy | 90–110 km/h | 12–18 kg/m² | 1,200–1,500 kg |
| 40x60 m | Aluminum Alloy | 80–100 km/h | 10–15 kg/m² | 1,500–2,000 kg |
Sidewalls: 650g/sqm PVC fabric, translucent, water-proof, UV resistant, fire retardant to DIN4102 B1/M2/B1.
Strength
All covers are made of double-coated synthetic fiber with best performance in breaking strength
Premimum grade, high gloss, white, thickness >=0.67mm
successful cases
Our project in Greece

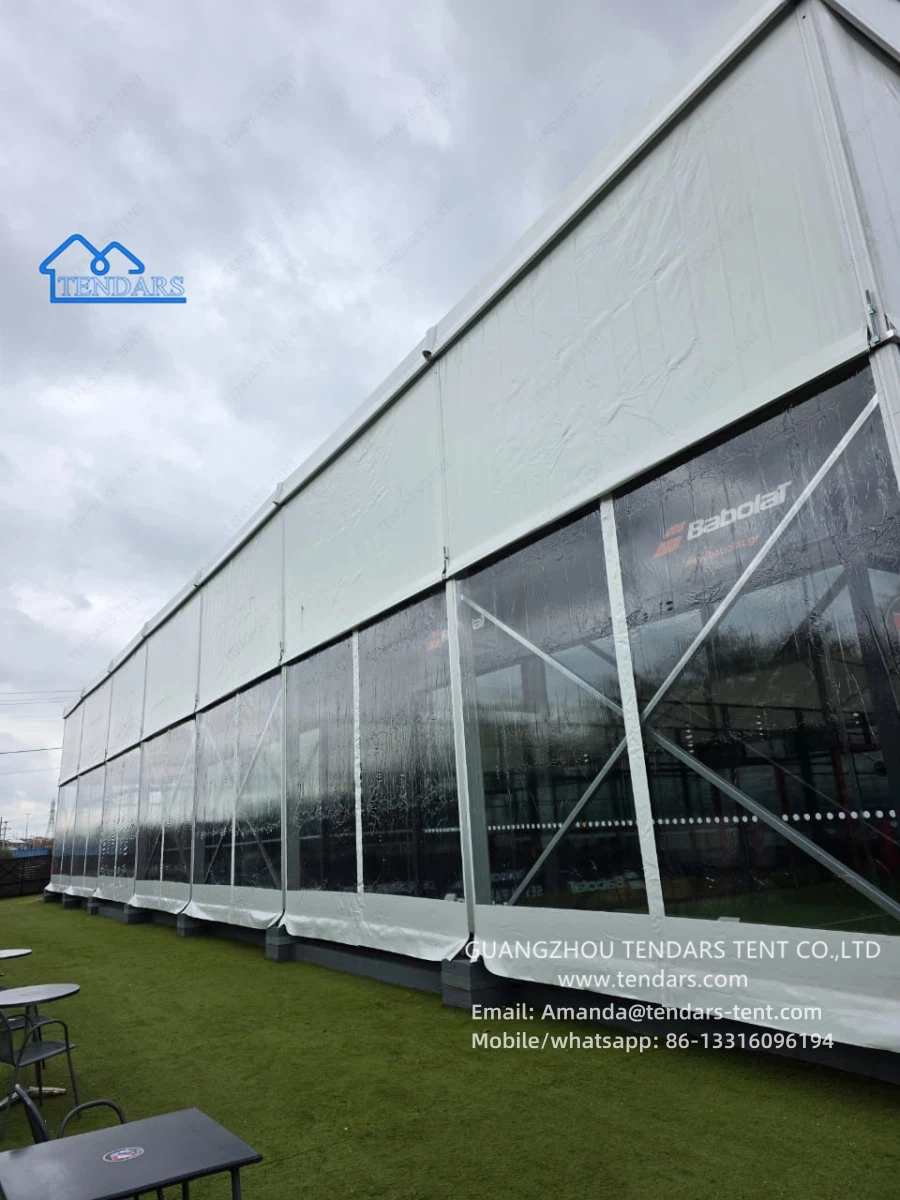

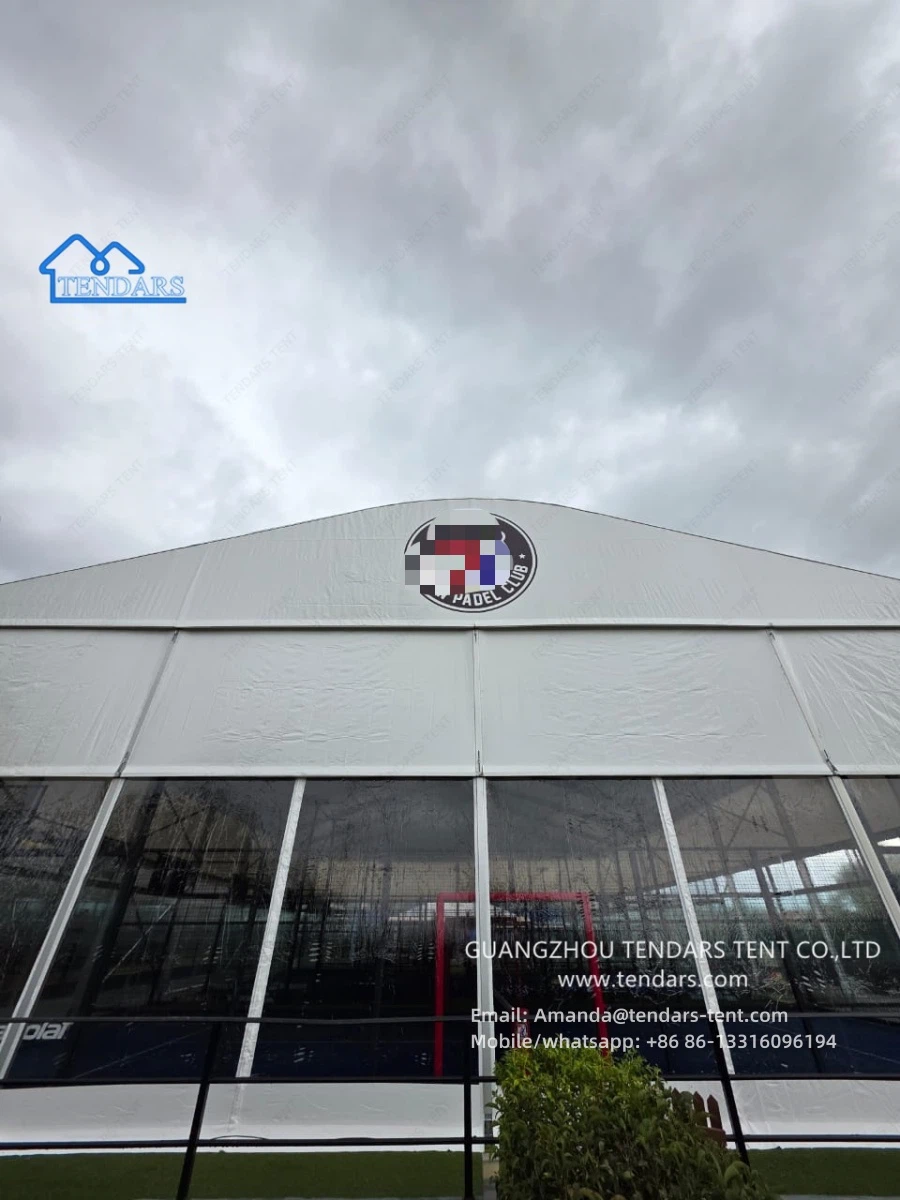

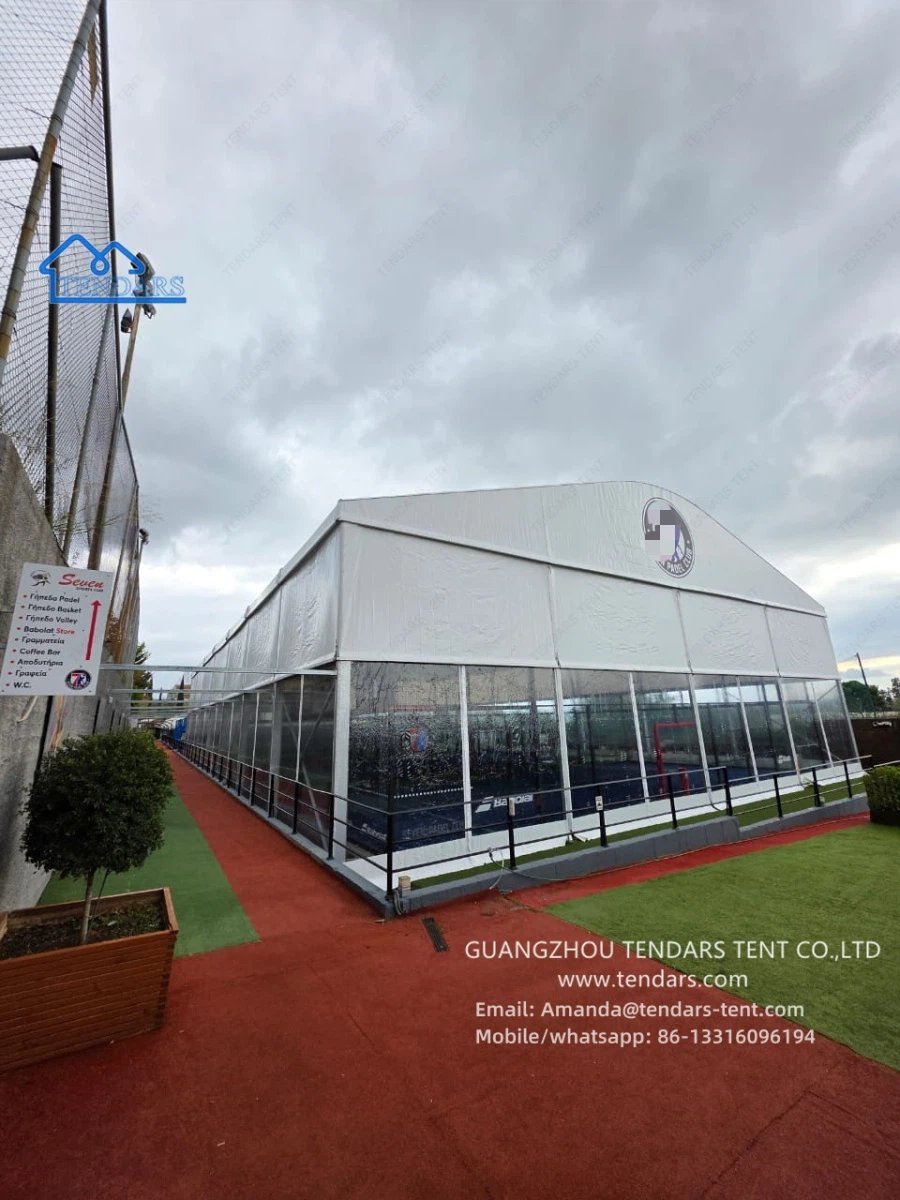

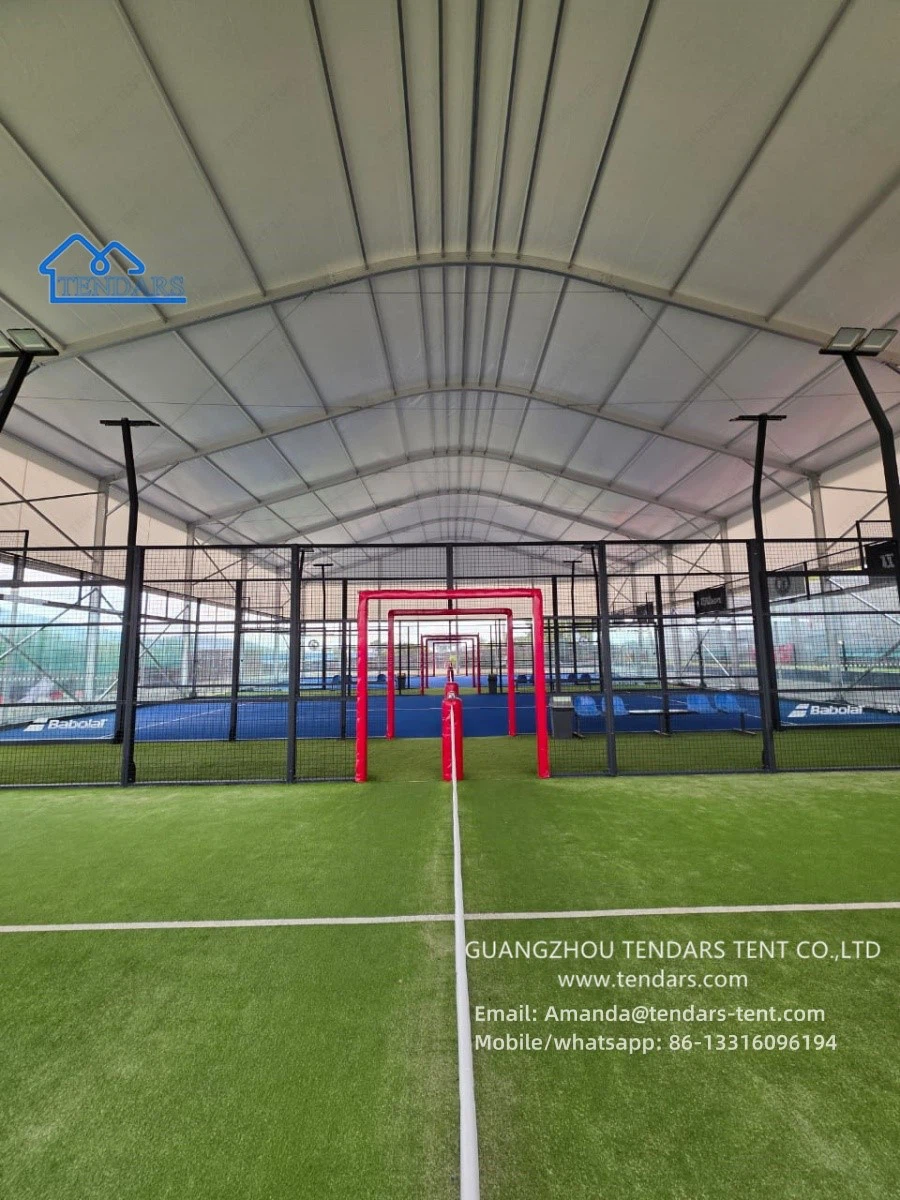

22x40m padel court shading in greece
Modular design for easy expansion, extendable to any length.
Sidewall options

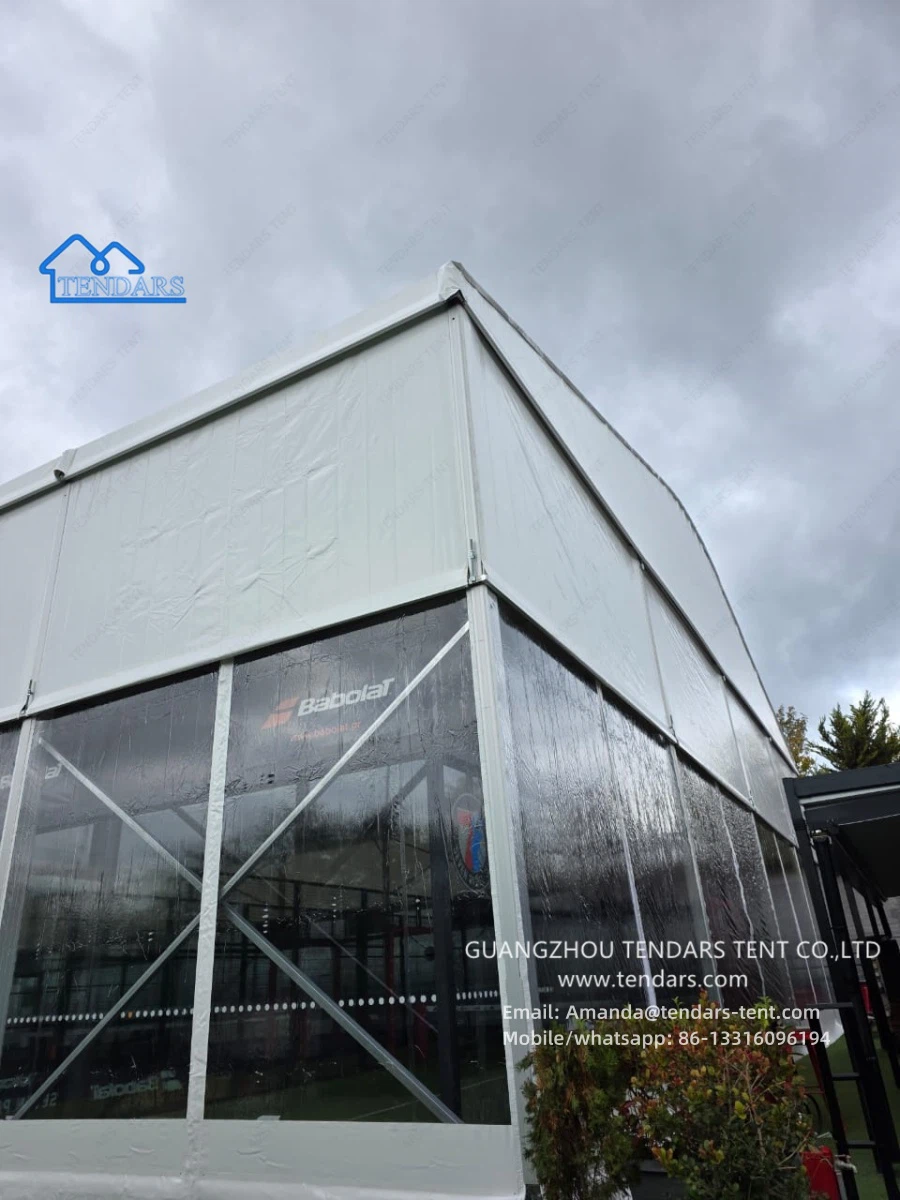

PVC fabric sidewalls, upper section for white and lower section for transparent.
Options: Glass sidewall, Sandwich sidewall, ABS sidewall, PVC fabric sidewall.
Customized logo or advertisement
Any logos can be customized according to your need, logo file needed.
Strong structure with accessories
All necessary accessories are included and are brand new.
why choose us
Your Trusted Partner with 10+ Years of Experience
why choose us and our products
1. Expert in Aluminum Alloy Tent Solutions with 10+ Years of Experience.
2. We have Advanced CNC Machines for Precise and Accurate Aluminum Tent Production.
3. CE, TUV, and Other Certifications Ensure Premium Quality Aluminum and Tent Fabric Products.
4. Professional Design and Evaluation Teams to Create Your Unique Custom Product.
5. Decades of Experience and Successful Projects Worldwide – Trust Us with Your Project.
6. Complete After-Sales Support with On-Site Installation and Full Guidance.
7. 5-Year Warranty on Aluminum Products with Free Replacement for Non-Human Damage.
faq
Q:1.What kind of tent design do you have?
A: We mainly produce the aluminium frame tent, other customized tent is also available. Please leave your contact, later our team will send you the catalogue.
Q:2.What size of tent do you have?
A:The tent size is customized according your need. Please let us know what area need to be covered, such as the width and the length.
Q:3.what is your tent snow loading?
A:Standard Snow Load of 50KG/sqm with Flexible Reinforcement for Weather Conditions. Please let us know your requirements about the snow loading.
Q:4.Has your tent product been certified?
A:Yes.Our tent product has passed the engineering tests and gained the structural engineering certificates. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and gained the flame retardant certificates.
Q:5.What we should do if the tent have quality issues?
A:We would replace the product which have quality problems.
Q:6.How do I place an order?
A:It is customized product, please leave your contact information, our team will contact with you.
